Shaft Anodes

SHAFT

ANODE SPECIFICATIONS

NOMINAL WEIGHTNOMINAL DIMENSIONS
ITEM #
lb
(kg)

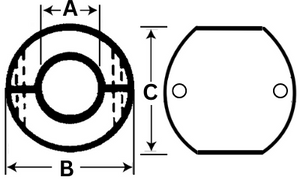

A: SHAFT DIAMETERB: DIAMETERC: THICKNESS
ZNMDX-1 - 2 BOLT
1.13 lb
(0.51 kg)
3/4"2 1/8"2 1/8"
ALAMDX-1 - 2 BOLT0.44 lb (0.2 kg)(19 mm)(54 mm)(54 mm)
ZNMDX-2 - 2 BOLT
1.03 lb
(0.47 kg)
7/8"2 1/8"2 1/8"
ALAMDX-2 - 2 BOLT0.4 lb (0.18 kg)(22 mm)(54 mm)(54 mm)
ZNMDX-3 - 2 BOLT
0.98 lb
(0.44 kg)
1"2 1/8"2 1/8"
ALAMDX-3 - 2 BOLT0.38 lb (0.17 kg)(25 mm)(54 mm)(54 mm)
ZNMDX-4 - 2 BOLT
0.86 lb
(0.39 kg)
1 1/8"2 1/8"2 1/8"
ALAMDX-4 - 2 BOLT0.34 lb (0.15 kg)(29 mm)(54 mm)(54 mm)
ZNMDX-5 - 2 BOLT
1.17 lb
(0.53 kg)
1 1/4"2 3/8"2 1/8"
ALAMDX-5 - 2 BOLT0.46 lb (0.21 kg)(32 mm)(60 mm)(64 mm)
ZNMDX-6 - 4 BOLT
2.4 lb
(1.09 kg)
1 3/8"2 3/4"2 1/8"
ALAMDX-6 - 4 BOLT0.94 lb (0.43 kg)(35 mm)(70 mm)(64 mm)
ZNMDX-7 - 4 BOLT
2.2 lb
(1 kg)
1 1/2"2 3/4"2 1/8"
ALAMDX-7 - 4 BOLT0.86 lb (0.39 kg)(38 mm)(70 mm)(67 mm)
ZNMDX-8 - 4 BOLT
2.53 lb
(1.15 kg)
1 3/4"3 1/4"2 1/8"
ALAMDX-8 - 4 BOLT0.99 lb (0.45 kg)(44 mm)(83 mm)(73 mm)
ZNMDX-8A - 4 BOLT
2.01 lb
(0.91 kg)
1 7/8"3 1/4"2 1/8"
ALAMDX-8A - 4 BOLT0.79 lb (0.36 kg)(48 mm)(83 mm)(73 mm)
ZNMDX-9 - 4 BOLT
2.01 lb
(0.91 kg)
2"3 1/4"2 1/8"
ALAMDX-9 - 4 BOLT0.79 lb (0.36 kg)(51 mm)(83 mm)(73 mm)
ZNMDX-9A - 4 BOLT
6.48 lb
(2.94 kg)
2 1/8"4 1/4"2 1/8"
ALN/A lb ( kg)(54 mm)(108 mm)(95 mm)
ZNMDX-10 - 4 BOLT
6 lb
(2.72 kg)
2 1/4"4 1/4"2 1/8"
ALAMDX-10 - 4 BOLT2.22 lb (1.01 kg)(57 mm)(108 mm)(102 mm)
ZNMDX-10A - 4 BOLT
5.58 lb
(2.53 kg)
2 3/8"4 1/4"2 1/8"
ALAMDX-10A - 4 BOLT2.18 lb (0.99 kg)(60 mm)(108 mm)(95 mm)
ZNMDX-11 - 4 BOLT
5.13 lb
(2.33 kg)
2 1/2"4 1/4"2 1/8"
ALAMDX-11 - 4 BOLT2 lb (0.91 kg)(64 mm)(108 mm)(95 mm)
ZNMDX-12 - 4 BOLT
6.92 lb
(3.14 kg)
2 3/4"4 3/4"2 1/8"
ALAMDX-12 - 4 BOLT2.7 lb (1.22 kg)(70 mm)(121 mm)(92 mm)
ZNMDX-13 - 4 BOLT
5.94 lb
(2.69 kg)
3"4 3/4"2 1/8"
ALAMDX-13 - 4 BOLT2.32 lb (1.05 kg)(76 mm)(121 mm)(92 mm)
ZNMDX-14 - 4 BOLT
11.10 lb
(5.03 kg)
3 1/4"5 5/8"2 1/8"
ALAMDX-14 - 4 BOLT4.34 lb (1.97 kg)(83 mm)(143 mm)(98 mm)
ZNMDX-15 - 4 BOLT
9.80 lb
(4.45 kg)
3 1/2"5 5/8"2 1/8"
ALAMDX-15 - 4 BOLT3.83 lb (1.74 kg)(89 mm)(143 mm)(98 mm)
ZNMDX-16 - 4 BOLT
8.50 lb
(3.86 kg)
3 3/4"5 5/8"2 1/8"
ALAMDX-16 - 4 BOLT3.15 lb (1.43 kg)(95 mm)(143 mm)(98 mm)
ZNMDX-17 - 4 BOLT
14.40 lb
(6.53 kg)
4"5 5/8"2 1/8"
ALAMDX-17 - 4 BOLT5.54 lb (2.51 kg)(102 mm)(143 mm)(95 mm)
ZNMDX-18 - 4 BOLT
11.50 lb
(5.22 kg)
4 1/2"6 3/4"2 1/8"
ALAMDX-18 - 4 BOLT4.6 lb (2.09 kg)(114 mm)(171 mm)(95 mm)
ZNMDX-20 - 4 BOLT
13 lb
(5.9 kg)
5 1/2"7 1/2"2 1/8"
ALN/A lb ( kg)(140 mm)(191 mm)(95 mm)

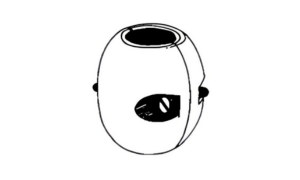

picture of anode
picture of anode

SHAFT

ANODE SPECIFICATIONS

HEAVY SERIES

NOMINAL WEIGHTNOMINAL DIMENSIONS
ITEM #
lb
(kg)
A: SHAFT DIAMETERB: DIAMETERC: THICKNESS
ZNMDX-0H - 2 BOLT
1.26 lb
(0.57 kg)
1/2"2 1/8"2 1/8"
ALAMDX-0H - 2 BOLT0.49 lb (0.22 kg)(13 mm)(54 mm)(54 mm)
ZNMDX-4H - 4 BOLT
1.60 lb
(0.73 kg)
1 1/8"2 3/8"2 1/8"
ALAMDX-4H - 4 BOLT0.95 lb (0.43 kg)(29 mm)(60 mm)(64 mm)
ZNMDX-5H - 4 BOLT
2 lb
(0.91 kg)
1 1/4"2 3/4"2 1/8"
ALAMDX-5H - 4 BOLT0.65 lb (0.29 kg)(32 mm)(70 mm)(64 mm)
ZNMDX-6H - 4 BOLT
3.31 lb
(1.5 kg)
1 3/8"3 1/4"2 1/8"
ALAMDX-6H - 4 BOLT1.29 lb (0.59 kg)(35 mm)(83 mm)(73 mm)
ZNMDX-7H - 4 BOLT
3 lb
(1.36 kg)
1 1/2"3 1/4"2 1/8"
ALAMDX-7H - 4 BOLT1.17 lb (0.53 kg)(38 mm)(83 mm)(73 mm)
ZNMDX-8H - 4 BOLT
4.05 lb
(1.84 kg)
1 3/4"3 9/16"2 1/8"
ALAMDX-8H - 4 BOLT1.58 lb (0.72 kg)(44 mm)(90 mm)(86 mm)
ZNMDX-9H - 4 BOLT
3.4 lb
(1.54 kg)
2"3 9/16"2 1/8"
ALAMDX-9H - 4 BOLT1.33 lb (0.6 kg)(51 mm)(90 mm)(86 mm)
ZNMDX-10H - 4 BOLT
8.7 lb
(3.95 kg)
2 1/4"4 3/4"2 1/8"
ALAMDX-10H - 4 BOLT3.4 lb (1.54 kg)(57 mm)(121 mm)(102 mm)
ZNMDX-11H - 4 BOLT
7.6 lb
(3.45 kg)
2 1/2"4 3/4"2 1/8"
ALAMDX-11H - 4 BOLT2.97 lb (1.35 kg)(64 mm)(121 mm)(102 mm)
ZNMDX-12H - 4 BOLT
13 lb
(5.9 kg)
2 3/4"5 5/8"2 1/8"
ALAMDX-12H - 4 BOLT5.08 lb (2.3 kg)(70 mm)(143 mm)(92 mm)
ZNMDX-13H - 4 BOLT
9.2 lb
(4.17 kg)
3"5"2 1/8"
ALAMDX-13H - 4 BOLT3.59 lb (1.63 kg)(76 mm)(127 mm)(102 mm)
ZNMDX-14H - 4 BOLT
18 lb
(8.16 kg)
3 1/4"6 3/4"2 1/8"
ALAMDX-14H - 4 BOLT7.03 lb (3.19 kg)(83 mm)(171 mm)(95 mm)
ZNMDX-15H - 4 BOLT
17 lb
(7.71 kg)
3 1/2"6 3/4"2 1/8"
ALAMDX-15H - 4 BOLT6.64 lb (3.01 kg)(89 mm)(171 mm)(95 mm)
ZNMDX-17H - 4 BOLT
14.4 lb
(6.53 kg)
4"6 3/4"2 1/8"
ALAMDX-17H - 4 BOLT5.63 lb (2.55 kg)(102 mm)(171 mm)(95 mm)
ZNMDX-19H - 4 BOLT
16 lb
(7.26 kg)
4 1/2"6 3/4"2 1/8"
ALN/A4.6 lb (2.09 kg)(114 mm)(171 mm)(0 mm)

SHAFT

ANODE SPECIFICATIONS

METRIC SERIES

NOMINAL WEIGHTNOMINAL DIMENSIONS
ITEM #
lb
(kg)
A: SHAFT DIAMETERB: DIAMETERC: THICKNESS
ZNMDX-20MM - 2 BOLT
0.75 lb
(0.34 kg)
48/61"2 1/8"3 3/4"
ALAMDX-20MM - 2 BOLT0.29 lb (0.13 kg)(20 mm)(54 mm)(95 mm)
ZNMDX-25MM - 2 BOLT
0.98 lb
(0.44 kg)
61/62"2 1/8"2 1/8"
ALAMDX-25MM - 2 BOLT0.38 lb (0.17 kg)(25 mm)(54 mm)(54 mm)
ZNMDX-30MM - 4 BOLT
1.75 lb
(0.79 kg)
1 9/50"2 1/2"2 3/8"
ALAMDX-30MM - 4 BOLT0.68 lb (0.31 kg)(30 mm)(64 mm)(60 mm)
ZNMDX-35MM - 4 BOLT
1.5 lb
(0.68 kg)
1 19/50"2 1/2"2 1/2"
ALAMDX-35MM - 4 BOLT0.59 lb (0.27 kg)(35 mm)(64 mm)(64 mm)
ZNMDX-40MM - 4 BOLT
4.45 lb
(2.02 kg)
1 27/50"3 9/16"2 7/8"
ALAMDX-40MM - 4 BOLT1.74 lb (0.79 kg)(39 mm)(90 mm)(73 mm)
ZNMDX-45MM - 4 BOLT
4.05 lb
(1.84 kg)
1 67/87"3 9/16"2 7/8"
ALAMDX-45MM - 4 BOLT1.58 lb (0.72 kg)(45 mm)(90 mm)(73 mm)
ZNMDX-50MM - 4 BOLT
3.65 lb
(1.66 kg)
1 32/33"3 9/16"2 7/8"
ALAMDX-50MM - 4 BOLT1.43 lb (0.65 kg)(50 mm)(90 mm)(73 mm)
ZNMDX-60MM - 4 BOLT
5.6 lb
(2.54 kg)
2 9/25"4 1/4"2 7/8"
ALAMDX-60MM - 4 BOLT2.19 lb (0.99 kg)(60 mm)(108 mm)(73 mm)
ZNMDX-70MM - 4 BOLT
5.90 lb
(2.68 kg)
2 19/25"0"0"
ALAMDX-70MM - 4 BOLT2.4 lb (1.09 kg)(70 mm)(0 mm)(0 mm)
ZNMDX-75MM - 4 BOLT
6.10 lb
(2.77 kg)
2 19/20"4 3/4"3 5/8"
ALAMDX-75MM - 4 BOLT2.38 lb (1.08 kg)(75 mm)(121 mm)(92 mm)
ZNMDX-80MM - 4 BOLT
8.2 lb
(3.72 kg)
2 19/20"4 3/4"3 5/8"
ALAMDX-80MM - 4 BOLT3.2 lb (1.45 kg)(75 mm)(121 mm)(92 mm)
ZNMDX-85MM - 4 BOLT
- lb
(- kg)
0"0"0"
ALAMDX-85MM - 4 BOLT- lb (- kg)(0 mm)(0 mm)(0 mm)

For more Shaft Anodes, please see our MDG section.
