Mercury 847266
IN ALUMINUM ONLY
AMD-847266 ALUMINUM ANODE WEIGHT: 0.7 OZ
DIAMETER: 1-3/4"
THICKNESS: 1/4"
HOLE DIAMETER: 0.20"
IN ALUMINUM ONLY
AMD-847332 ALUMINUM ANODE WEIGHT: 2.8 OZ
DIAMETER: 2-7/8"
THICKNESS: 1/4"
HOLE DIMETER: 1/4"
Mercury 847332
MD-865182 ZINC ANODE WEIGHT: 1.12 LBS
AMD-865182 ALUMINUM ANODE WEIGHT: 0.42 LBS
Mercury 806188
MD-806188 ZINC ANODE WEIGHT: 0.33 LBS
AMD-806188 ALUMINUM ANODE WEIGHT: 0.12 LBS
MOUNTING HOLES: 3.1" CENTER TO CENTER
Mercury 98432-5
MD-98432-5 ZINC ANODE WEIGHT: 0.94 LBS
AMD-98432-5 ALUMINUM ANODE WEIGHT: 0.37 LBS
THREAD SIZE: M8 X 1.25
MD-821629 ZINC ANODE WEIGHT: 1.59 LBS
AMD-821629 ALUMINUM ANODE WEIGHT: 0.62 LBS
LENGTH: 7-1/2"
WIDTH: 2.9"
HOLE DIAMETER: 1/4"
THREAD SIZE: 1/4-20 UNC
Mercury 821629

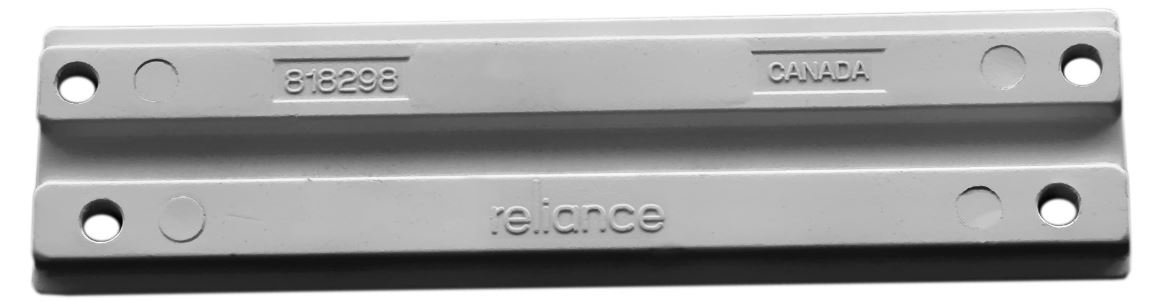

Mercury 818298
MD-818298 ZINC ANODE WEIGHT: 1.40 LBS
AMD-818298 ALUMINUM ANODE WEIGHT: 0.55 LBS
LENGTH: 7-1/2"
WIDTH: 2"
THICKNESS: 7/8
HOLE DIAMETER: 1/4"
Mercury 89949
Mercury 822157-C2
MD-822157-C2 ZINC ANODE WEIGHT: 1.10 LBS
AMD-822157-C2 ALUMINUM ANODE WEIGHT: 0.39 LBS
DIAMETER: 3-5/8"
HEIGHT: 2-3/4"
MD-806105 ZINC ANODE WEIGHT: 0.49 LBS
AMD-806105 ALUMINUM ANODE WEIGHT: 0.19 LBS
MOUNTING HOLES: 3" CENTER TO CENTER
MD-76214-5 ZINC ANODE WEIGHT: 0.65 LBS
AMD-76214-5 ALUMINUM ANODE WEIGHT: 0.25 LBS
DIAMETER: 3-1/2"
THREAD SIZE: 7/16-14 UNC
MD-76214 & MD-76214-4 ZINC ANODE WEIGHT: 0.61 LBS
AMD-76214 & AMD-76214-4 ALUMINUM ANODE WEIGHT: 0.24 LBS
DIAMETER: 3-1/2"
THREAD SIZE: 7/16-14 UNC
MD-76214-4 AND AMD-76214-4 (UNTHREADED)
Mercury 76214 & 76214-4
MD-46399 ZINC ANODE WEIGHT: 0.82 LBS
AMD-46399 ALUMINUM ANODE WEIGHT: 0.32 LB
DIAMETER: 3-1/2"
HEIGHT: 3-1/2"
THREAD SIZE: 7/16-14 UNC
Mercury 46399

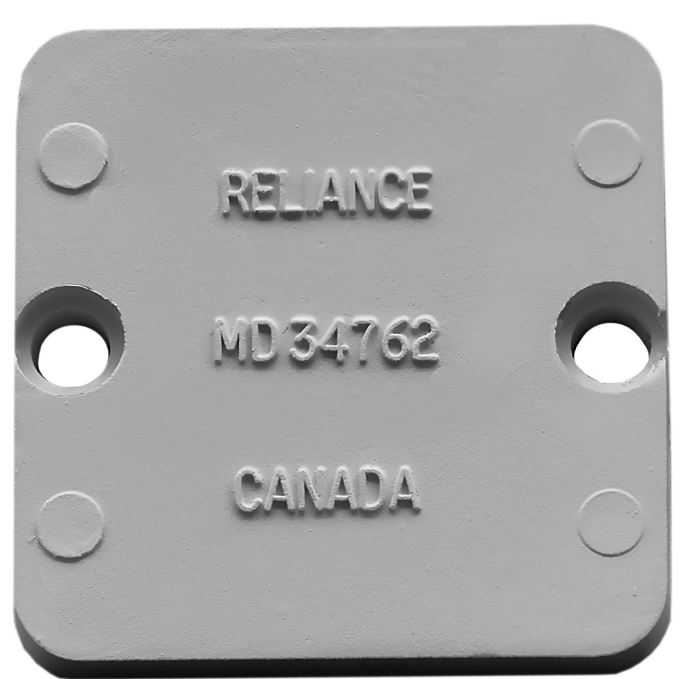

MD-34762 ZINC ANODE WEIGHT: 0.50 LBS
AMD-34762 ALUMINUM ANODE WEIGHT: 0.20 LBS
LENGTH: 2-1/2"
WIDTH: 2-1/2"
THCKNESS: 3/8"
1/4" HOLES ON 2" CENTER
FITS MERCRUISER TR AND TRS OUTDRIVES

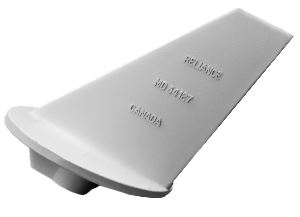

MD-34127 ZINC ANODE WEIGHT: 1.2 LBS
AMD-34127 ALUMINUM ANODE WEIGHT: 0.50 LBS
DIAMETER: 3-1/2"
HEIGHT: 5"
THREAD SIZE: 7/16-14 UNC
Mercury 34127
MD-31640 ZINC ANODE WEIGHT: 1.1 LBS
AMD-31640 ALUMINUM ANODE WEIGHT: 0.41 LBS
DIAMETER: 3-1/2"
HEIGHT: 2-1/2"
THREAD SIZE: 7/16-14 UNC
Mercury 31640
Mercury/Mercruiser Anodes
DON'T LET CORROSION EAT INTO YOUR INVESTMENT
DEMAND "RELIANCE" MIL SPEC ANODES
Mercury 848653T
IN ALUMINUM ONLY
AMD-848653T ALUMINUM ANODE WEIGHT: 0.6 LBS
DIAMETER: 3"
THICKNESS: 1-1/8"
HOLE DIAMETER: 3/8"

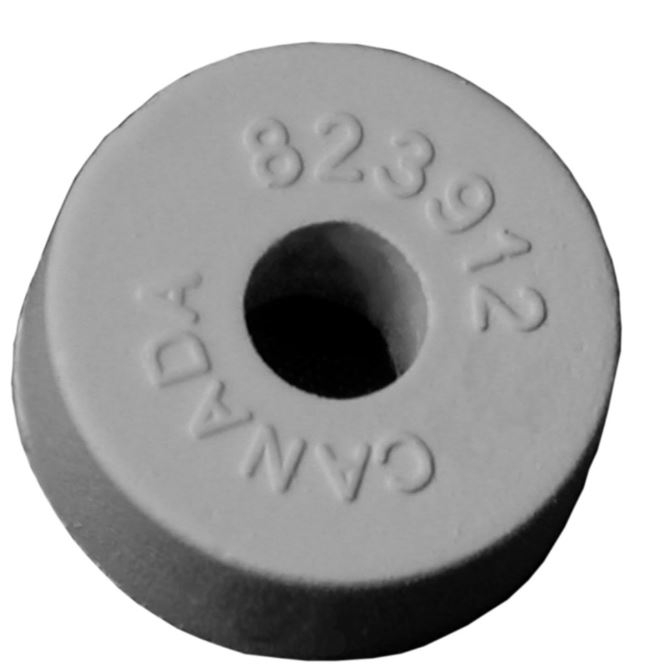

Mercury 823912
MD-823912 ZINC ANODE WEIGHT: 0.03 LBS
AMD-823912 ALUMINUM ANODE WEIGHT: 0.01 LBS
DIAMETER: 13/16"
THICKNESS: 1/4"
HOLE DIAMETER: 1/4"
Mercury 865182
Mercury 806190
MD-806190 ZINC ANODE WEIGHT: 0.67 LBS
AMD-806190 ALUMINUM ANODE WEIGHT: 0.26 LBS
THICKNESS: 2"
MOUNTING HOLES: 1-1/2" CENTER TO CENTER
MD-821631 ZINC ANODE WEIGHT: 1.99 LBS
AMD-821631 ALUMINUM ANODE WEIGHT: 0.78 LBS
LENGTH: 4"
WIDTH: 3"
HOLE DISTANCE: 1-3/8" CENTER TO CENTER
Mercury 821631
MD-821630 ZINC ANODE WEIGHT: 2.21 LBS
AMD-821630 ALUMINUM ANODE WEIGHT: 0.86 LBS
LENGTH: 7"
WIDTH: 4"
THICKNES: 1/2"
HOLE DIAMETER: 1/4"
Mercury 821630
MD-89949 ZINC ANODE WEIGHT: 2.57 LBS
AMD-89949 ALUMINUM ANODE WEIGHT: 1.12 LBS
LENGTH: 11-1/2"
WIDTH: 2-1/4"
HOLE DISTANCE: 1-1/4"
HOLE DIAMETER: 1/2"
MD-826134 ZINC ANODE WEIGHT: 0.50 LBS
AMD-826134 ALUMINUM ANODE WEIGHT: 0.21 LBS
LENGTH: 2-15/16"
WIDTH: 1-1/16"
HEIGHT: 7/8"
HOLE DIAMETER: 1/4"
Mercury 826134
Mercury 806189
MD-806189 ZINC ANODE WEIGHT: 0.19 LBS
AMD-806189 ALUMINUM ANODE WEIGHT: 0.07 LBS
THICKNESS: 1/2"
MOUNTING HOLES: 1-5/8" CENTER TO CENTER
Mercury 806105
Mercury 43396
MD-43396 ZINC ANODE WEIGHT: 1.46 LBS
AMD-43996 ALUMINUM ANODE WEIGHT: 0.57 LBS
LENGTH: 7-3/4"
WIDTH: 2-1/16"
HOLE DISTANCE: 7"
HOLE DIAMETER: 1/4"
MD-43994 (821631) ZINC ANODE WEIGHT: 1.95 LBS
AMD-43994 (821631) ALUMINUM ANODE WEIGHT: 0.76 LBS
LENGTH: 4"
WIDTH: 3"
HOLE CENTER TO CENTER: 1-3/8"
43994 AND 821631 ARE INTERCHANGEABLE
Mercury 43994

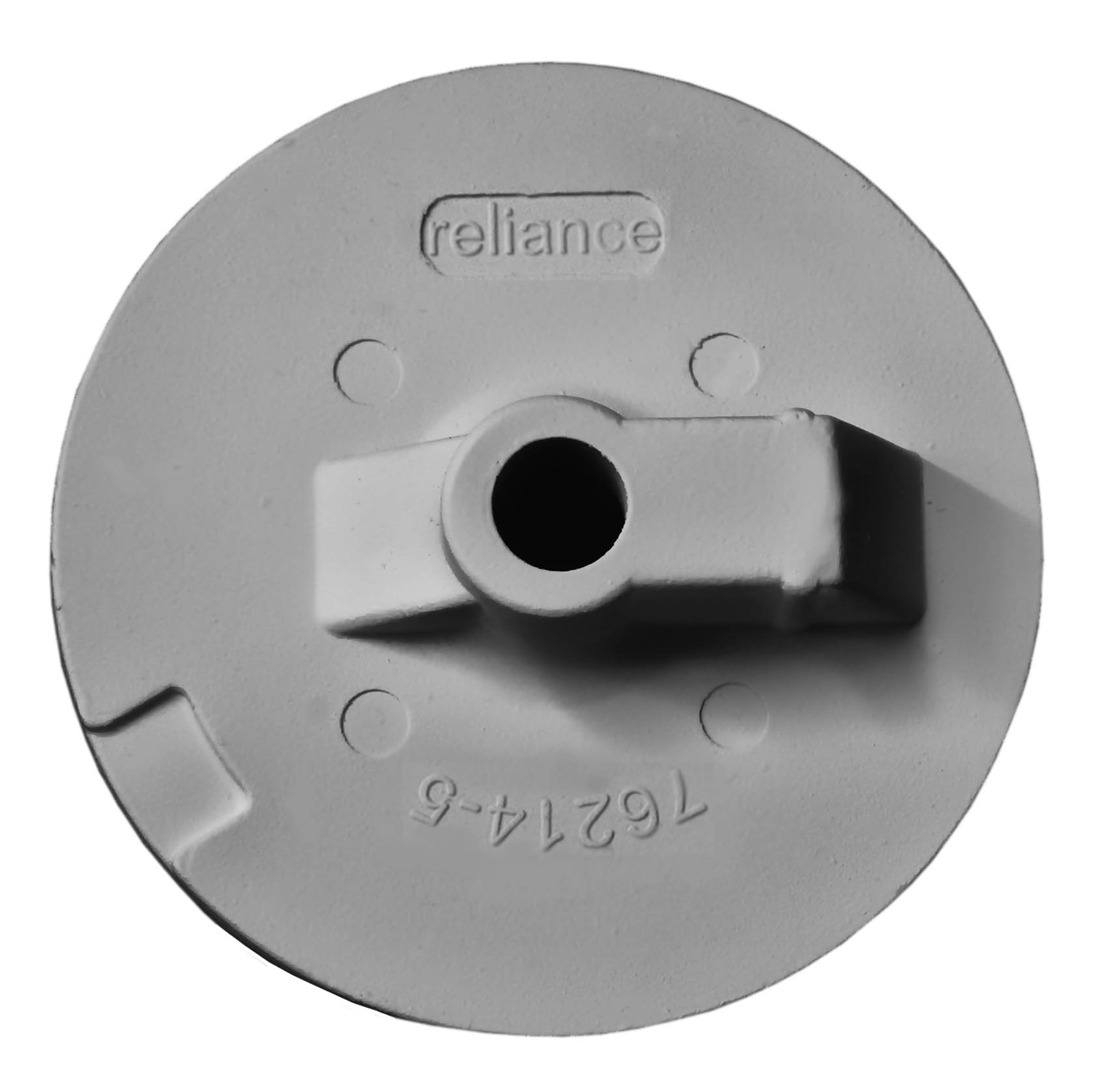

Mercury 76214-5

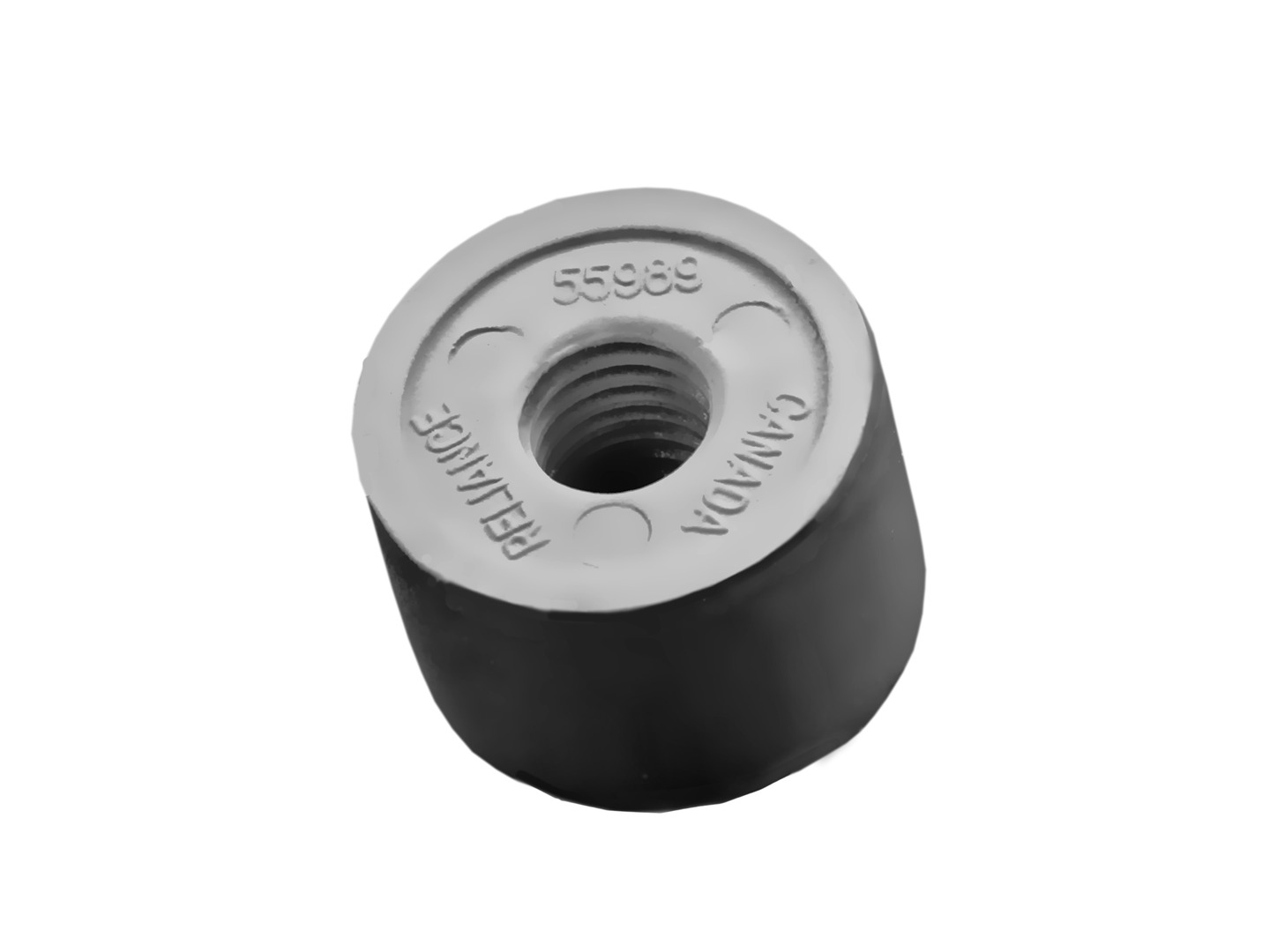

Mercury 55989
MD-55989 ZINC ANODE WEIGHT: 0.25 LBS
AMD-55989 ALUMINUM ANODE WEIGHT: 0.09 LBS
DIAMETER: 1-1/4"
HEIGHT: 1-1/8"
THREAD SIZE: 7/16-14 UNC
